Bought a kit from Polo in Germany, and finally got round to fitting it today...

The first question was where to fit it, and then how to wire it through from the battery.

On the RD07 it's possible to run the wires along the frame under the tank and up to the 'cockpit' area.

Undo the bolts under the seat, and the front fairing bolts. Place something under the back of the tank(in my case a large socket) to lift it slightly;



You'll then need something long and thin(someone suggested a welding rod elsewhere on here), I used a metre rule. Tape the ends of the wire to the end of the rule and thread it through from the handlebar end. I threaded them individually at first, but due to having to reroute them after fitting the socket I discovered that both will fit;) Note that the live wire has a fuse jobby on it.





I ummed and ahhed about where to put the socket, due to it having an odd type of vertical mounting backplate. I thought about a couple of self tappers through the idiot light box, but decided not to do any physical damage to the bike:angel1: I ended up cable tying it to the fairing frame next to the left indicator;





The wires run down the frame alongside existing wiring. I had to build in some slack to allow for full lock. The two wires were cable tied together to keep it all tidy( a legacy of my time wiring German Frigates in a shipyard:D)



Where the wires run out from underneath the tank, I protected them with several layers of heatshrink; I'm sure insulation tape would've done the job but my roll got ruined last week when an oil container leaked into my tool box:mad: and I haven't got round to replacing it.







The only problem then was trying to stuff the too-long rest of the cable into the battery compartment...I could have shortened it(and may indeed have to if it gets too hot), but didn't want to mess around soldering wires and new connectors. The compartment cover fits where it touches:D





Ideally I'd have liked a switch in the system so that it wasn't live full time, but that'll have to wait for another day! I'll keep an eye on the wire in the battery compartment to see if it gets hot, but it should be OK as it'll just be running my GPS and if neccessary, my tyre compressor...

I'll post the pics of the ensuing fire as and when:p


·
Registered
Joined
·
4,162 Posts
I dont see fuse.. you should have an inline fuse as close to that postive battery connection as possible..


·
Registered
Joined
·
1,044 Posts
Discussion Starter #3
The fuse is about 6" from the battery! You can just see the holder behind the loop of black wire in the 2nd last pic...trust me there is one;)


·
Registered
Joined
·
4,162 Posts
The fuse is about 6" from the battery! You can just see the holder behind the loop of black wire in the 2nd last pic...trust me there is one;)
:) that fine

you can now add another one next to it ,but have this feed from a relay powered by a switched feed :) as long as that main fuse is there you will be fine.. just jumper off the main feed to the first unswitched plug as that is a fused supply

mine is just cabletied to the indicator support on the left..


·
Registered
Joined
·
241 Posts
nice one:D
i would have taken the side panel off and routed the cable throught the same hole as the battery pick up cable, so you r not trapping the cable with the battery cover???or the tank could cause a short routed that way???:thumb:


·
Registered
Joined
·
1,044 Posts
Discussion Starter #6
nice one:D
i would have taken the side panel off and routed the cable throught the same hole as the battery pick up cable, so you r not trapping the cable with the battery cover???or the tank could cause a short routed that way???:thumb:
Doh! Obvious when you think about it:D I'll do that;)


·
Registered
Joined
·
1,044 Posts
Discussion Starter #7
As Karl S rightly pointed out, running it through the battery compartment entry was a much more sensible idea...so that's wot oi did;)

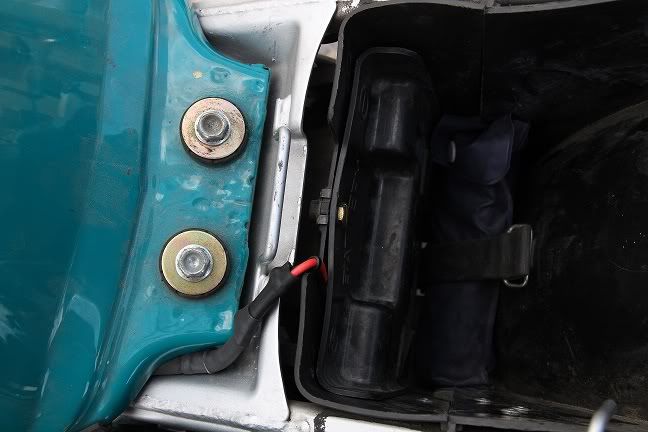

The heatshrink was already showing signs of wear, although I think that was due to the thickness of it. I couldn't get my fingers under the tank far enough to run the cables inside the frame, but this is still a lot neater and safer than before...
